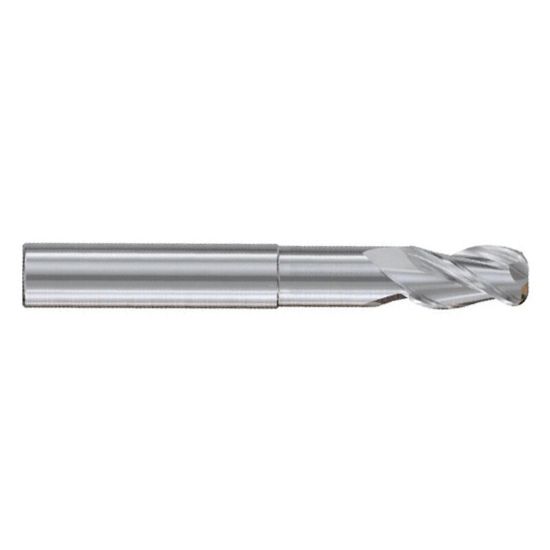

YG-1 E5G98981 DIA 1 SH 1.00 LOC 1.2500 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.2500 6.35MM Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G98981
Delivery date: 3-5 days
$354.37

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Profile Milling, Slot Milling, Side Milling, Copy Milling, Face Milling
Shipping State Illinois
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Corner Radius 0.2500 6.35MM
Neck Length 3.3750 85.73MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Cutter Dia 1.0000 25.40MM
Length Type Standard / With Neck
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Helix Angle 37°
Overall Len 6.0000 152.40MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
