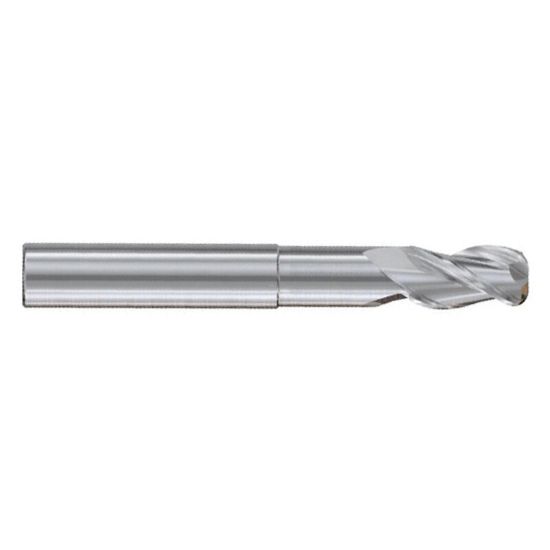

YG-1 E5G98958 DIA 3/4 SH 0.7500 LOC 1.00 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0900 2.29MM Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G98958
Delivery date: 3-5 days
$179.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Slot Milling, Face Milling, Profile Milling, Side Milling
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Helix Angle 37°
Cutter Dia 0.7500 19.05MM - 3/4
Neck Length 3.3750 85.73MM
Machine Side Connection Size 0.7500 19.05MM
Corner Radius 0.0900 2.29MM
Flutes/Inserts 3
Length Type Long / With Neck
Cutter Style Carbide Bull Nose Finisher
Shank/Pilot Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Corner Radius
Single/Double End Single End
Overall Len 6.0000 152.40MM
Length Of Cut 1.0000 25.40MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
