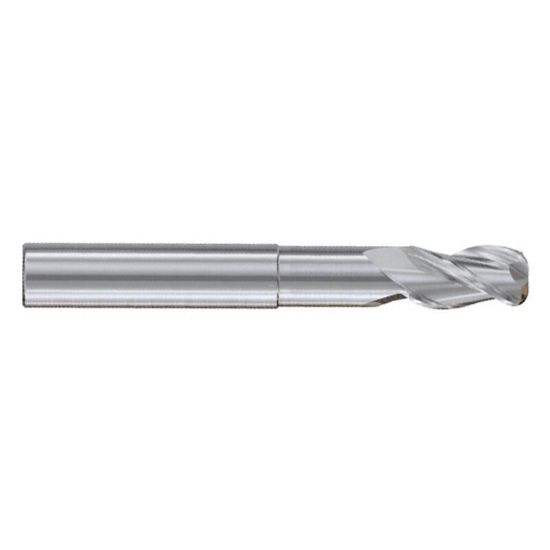

YG-1 E5G98948 DIA 5/8 SH 0.6250 LOC 0.7500 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.1900 4.83MM Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G98948
Delivery date: 3-5 days
$131.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Made In USA No
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Neck Length 3.3750 85.73MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Length Type Long / With Neck
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.1900 4.83MM
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 6.0000 152.40MM
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 0.7500 19.05MM
Single/Double End Single End
End Of Tool Shape Corner Radius
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Helix Angle 37°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
