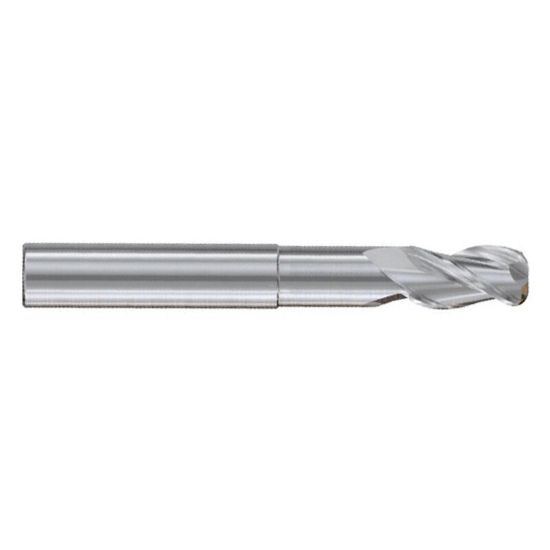

YG-1 E5G98945 DIA 5/8 SH 0.6250 LOC 0.7500 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G98945
Delivery date: 3-5 days
$131.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Application Face Milling, Profile Milling, Copy Milling, Slot Milling, Side Milling
Package Size 1
Dimensional Specifications
Corner Radius 0.0600 1.52MM
Flutes/Inserts 3
Length Type Long / With Neck
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Neck Length 3.3750 85.73MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Helix Angle 37°
Cutter Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Corner Radius
Overall Len 6.0000 152.40MM
Length Of Cut 0.7500 19.05MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
