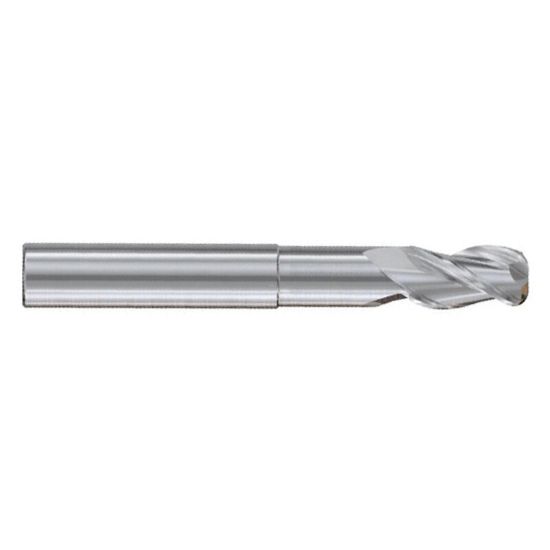

YG-1 E5G98927 DIA 1/2 SH 0.50 LOC 0.6250 OAL 5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G98927
Delivery date: 3-5 days
$93.68

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Corner Radius 0.0300 0.76MM
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cutter Style Carbide Bull Nose Finisher
Helix Angle 37°
End Of Tool Shape Corner Radius
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Neck Length 3.3750 85.73MM
Flutes/Inserts 3
Length Type Long / With Neck
Overall Len 5.0000 127.00MM
Length Of Cut 0.6250 15.88MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
