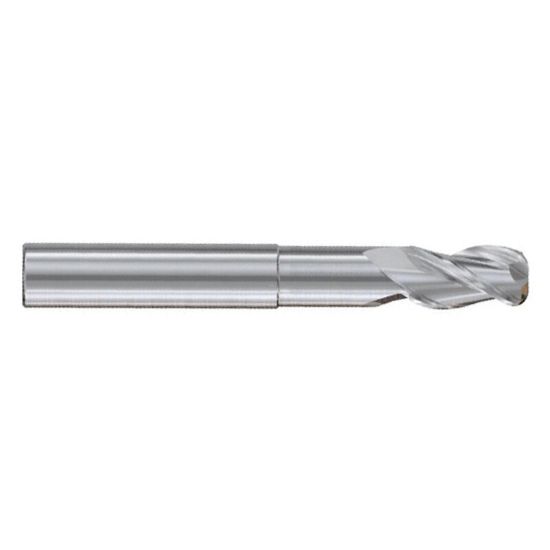

YG-1 E5G98905 DIA 1/4 SH 0.2500 LOC 0.3750 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G98905
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Length Type Long / With Neck
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Helix Angle 37°
Neck Length 1.1250 28.58MM
Overall Len 3.0000 76.20MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0600 1.52MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
