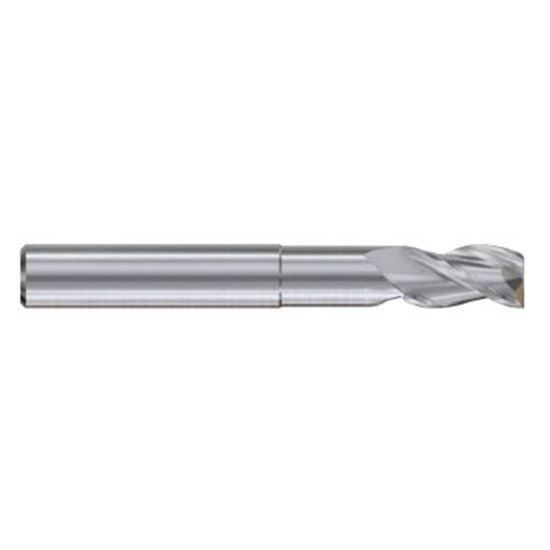

YG-1 E5G96903 DIA 1/2 SH 0.50 LOC 0.6250 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G96903
Delivery date: 3-5 days
$81.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 4.0000 101.60MM
Neck Length 2.2500 57.15MM
Flutes/Inserts 3
End Of Tool Shape Square
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Helix Angle 37°
Length Of Cut 0.6250 15.88MM
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
