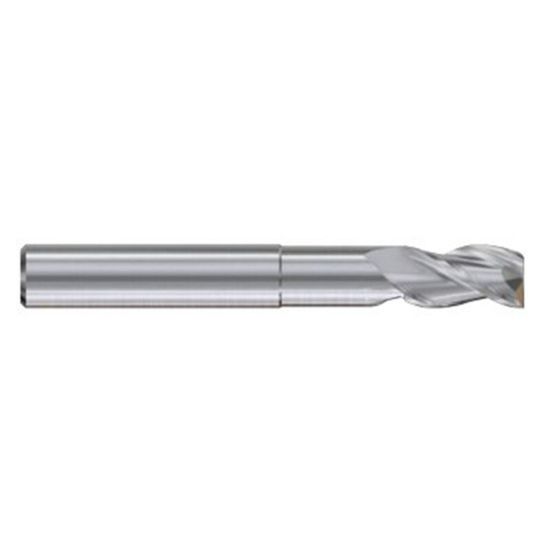

YG-1 E5G96902 DIA 3/8 SH 0.3750 LOC 0.50 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G96902
Delivery date: 3-5 days
$55.24

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
Neck Length 2.1250 53.98MM
Overall Len 4.0000 101.60MM
Length Of Cut 0.5000 12.70MM
Cutter Dia 0.3750 9.53MM - 3/8
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
End Of Tool Shape Square
Helix Angle 37°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
