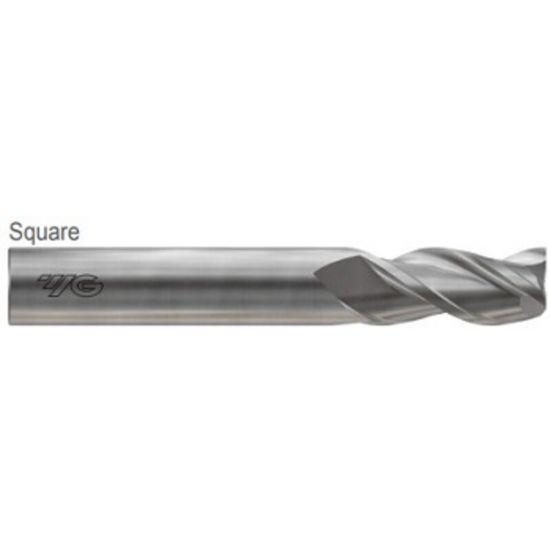

YG-1 E5G95917 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G95917
Delivery date: 3-5 days
$98.24

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.6250 41.28MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Helix Angle 37°
Length Type Standard
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
