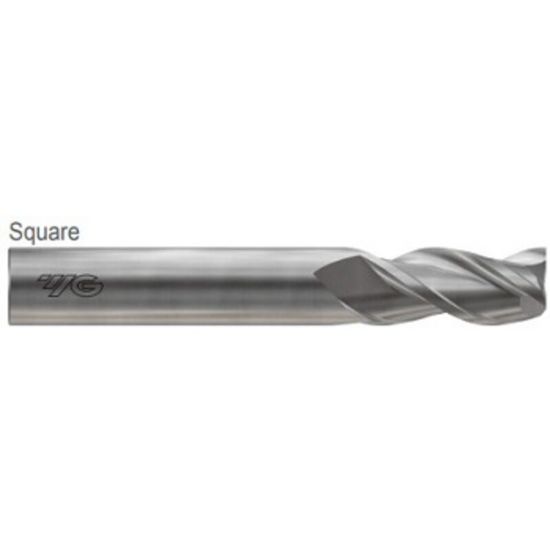

YG-1 E5G95908 DIA 3/8 SH 0.3750 LOC 1.50 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G95908
Delivery date: 3-5 days
$37.73

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Length Type Long
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Finisher
Inch/Metric Inch
Helix Angle 37°
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
