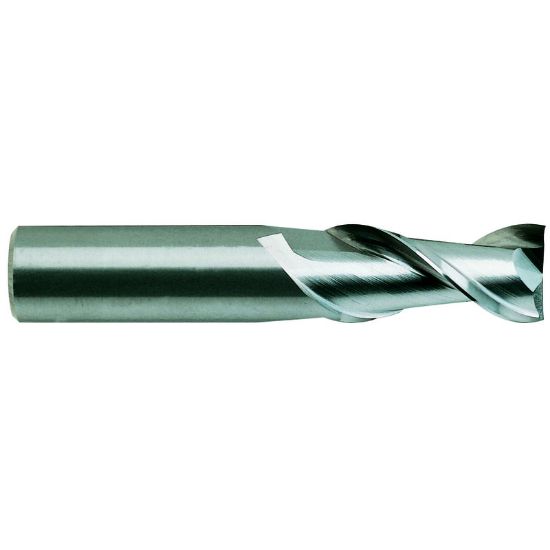

YG-1 E5522200 DIA 20MM SH 0.7874 LOC 1.4961 OAL 4.0945 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5522200
Delivery date: 3-5 days
$173.03

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Application Side Milling, Face Milling
Package Size 1
Dimensional Specifications
End Of Tool Shape Square
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
Helix Angle 45°
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Length Type Long
Inch/Metric Metric
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 4.0945 104.00MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
