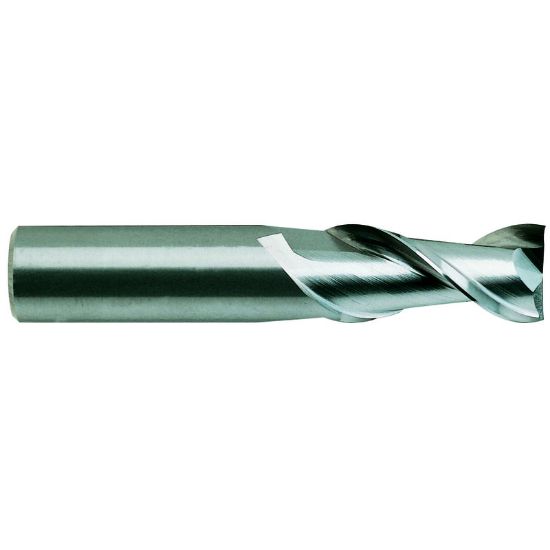

YG-1 E5522040 DIA 4MM SH 0.2362 LOC 0.4331 OAL 2.2441 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5522040
Delivery date: 3-5 days
$18.97

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Single/Double End Single End
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Flutes/Inserts 2
Length Type Long
Inch/Metric Metric
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Style Carbide Finisher
Cutter Dia 0.1574 4.00MM
End Of Tool Shape Square
Length Of Cut 0.4331 11.00MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
