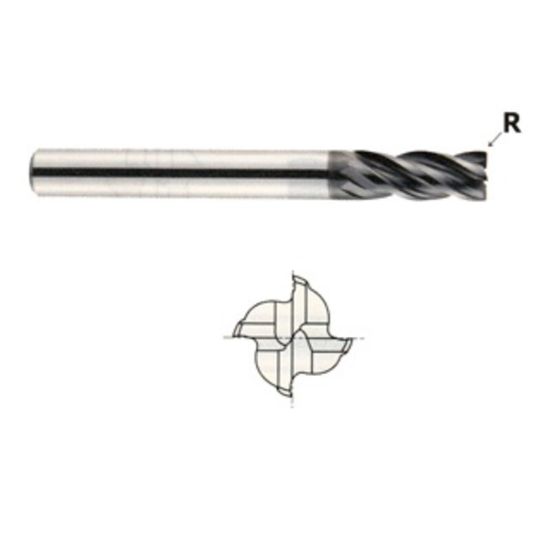

YG-1 E5062016S DIA 1/4" SH 0.2500 LOC 1.50 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Generic

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5062016S
Delivery date: 3-5 days
$25.75

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 4.0000 101.60MM
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Type Extra Long
Cutter Style Carbide Ball Finisher
Flutes/Inserts 4
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
