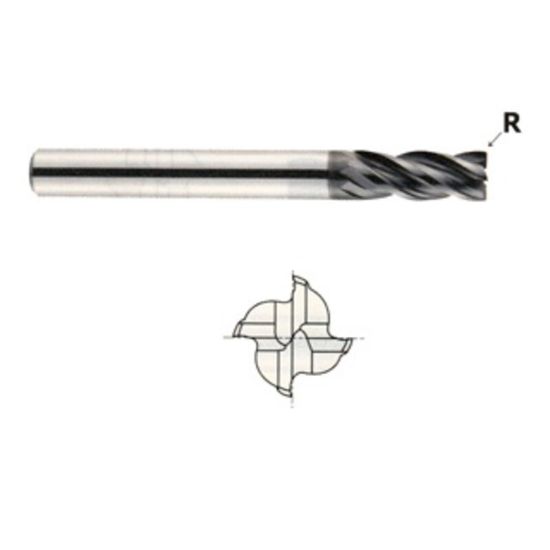

YG-1 E502604801 DIA 3/4" SH 0.7500 LOC 3.00 OAL 6.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Generic

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E502604801
Delivery date: 3-5 days
$151.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Illinois
Application Side Milling, Face Milling, Slot Milling
Made In USA Yes
Package Size 1
Dimensional Specifications
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Size 0.7500 19.05MM
Overall Len 6.0000 152.40MM
Length Type Extra Long
Helix Angle 30°
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Length Of Cut 3.0000 76.20MM
Cutter Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
