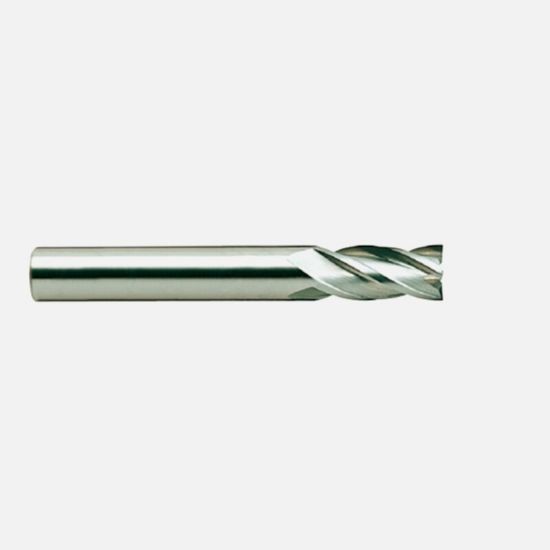

YG-1 E5012028 DIA 7/16" SH 0.4375 LOC 2.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Generic

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5012028
Delivery date: 3-5 days
$38.12

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Slot Milling, Face Milling
Shipping State Illinois
Package Size 1
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.4375 11.11MM - 7/16
End Of Tool Shape Square
Single/Double End Single End
Flutes/Inserts 4
Length Type Long
Overall Len 4.0000 101.60MM
Length Of Cut 2.0000 50.80MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
