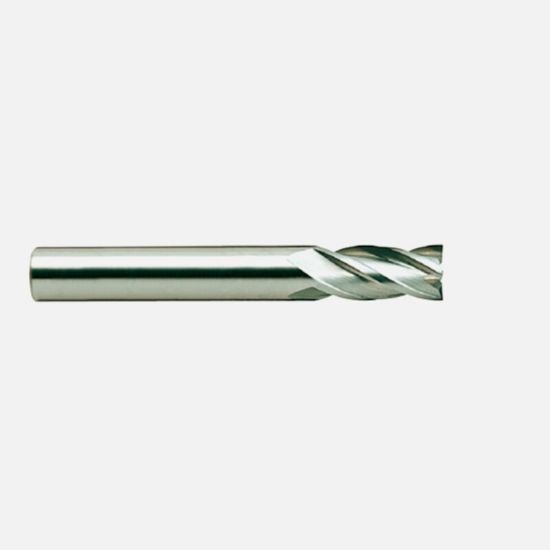

YG-1 E5012020 DIA 5/16" SH 0.3125 LOC 1.1250 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Generic

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5012020
Delivery date: 3-5 days
$19.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Face Milling, Side Milling, Slot Milling
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Helix Angle 30°
Cutter Dia 0.3125 7.94MM - 5/16
End Of Tool Shape Square
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Flutes/Inserts 4
Length Type Long
Machine Side Connection Size 0.3125 7.94MM
Length Of Cut 1.1250 28.58MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
