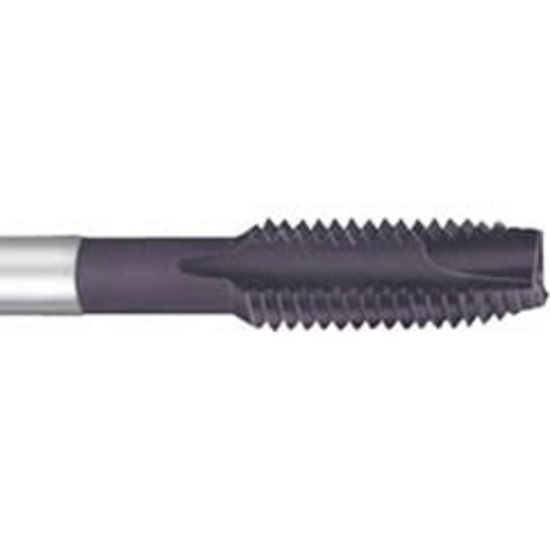

YG-1 E1523 7/16-14.00TPI Cut Spiral Point Plug 3.0P-5.0P P-HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E1523
Delivery date: 3-5 days
$60.53

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Coating Hardslick
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Thread Pitch 14.00TPI
Cut Rating High Temp, Inconel, Titanium
Overall Len 3.1560 80.16MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Limit H3/GH3
Length Type Standard
Thread Size 7/16"
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Tap Square 0.2420
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Flutes/Inserts 3
Thread Type NC/UNC
Cutting & Machining Properties
Cutting Edge Mat P-HSS
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
