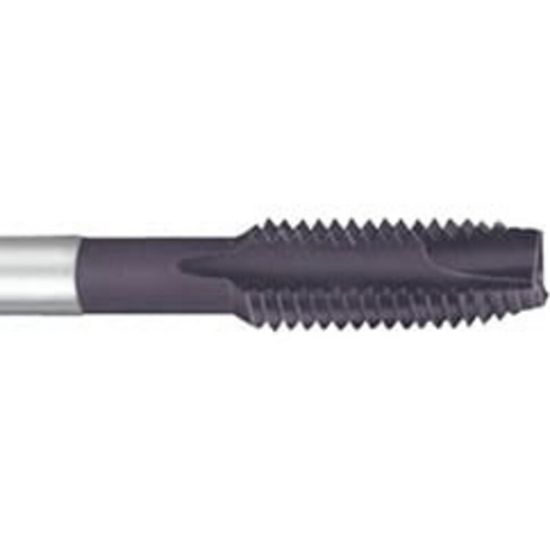

YG-1 E1162 No.4-40.00TPI Cut Spiral Point Plug 3.0P-5.0P P-HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E1162
Delivery date: 3-5 days
$32.37

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Shipping State Illinois
Made In USA No
Coating Hardslick
Performance Rating High Performance
Dimensional Specifications
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Tool Material Steel
Tap Square 0.1100
Thread Pitch 40.00TPI
Cut Rating High Temp, Inconel, Titanium
Thread Type NC/UNC
Thread Limit H3/GH3
Length Type Standard
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat P-HSS
Industry-Specific Applications
Job Shop Yes
Aerospace Yes
Medical Yes
