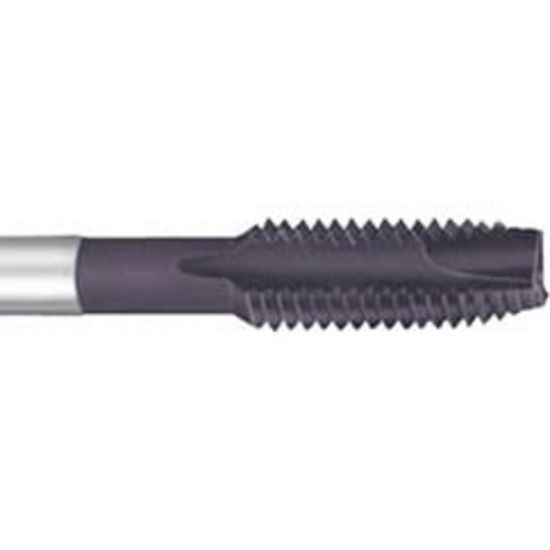

YG-1 E1082 No.2-56.00TPI Cut Spiral Point Plug 3.0P-5.0P P-HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E1082
Delivery date: 3-5 days
$64.07

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Package Size 1
Coating Hardslick
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Square 0.1100
Dimension Standard ANSI/ANSI
Thread Size No.2
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 2
Length Type Standard
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat P-HSS
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
