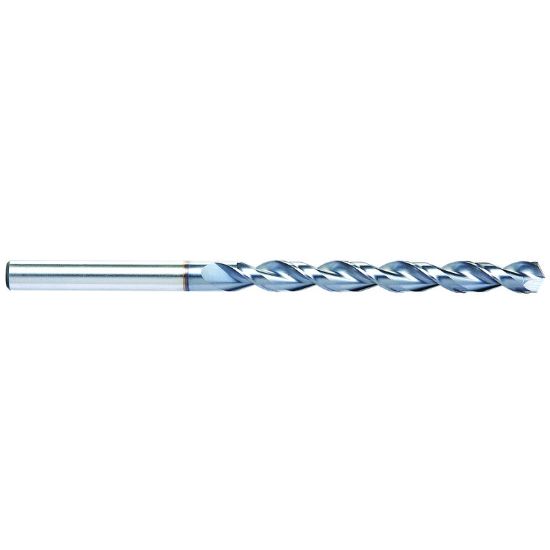

YG-1 DX517028 7/16 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill TICN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DX517028
Delivery date: 3-5 days
$56.63

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Shipping State Illinois
Application Drilling
Made In USA No
Package Size 5
Dimensional Specifications
Overall Len 7.2500 184.15MM
Cut Rating <25HRC Steel, Grey Iron, Graphite, Stainless Steel
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Included Angle 130°
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flute Length 4.6250 117.48MM
Drill Length Type Taper
Cutter Dia 0.4375 11.11MM - 7/16
Cut Dia Min 0.4375 11.11MM - 7/16
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
