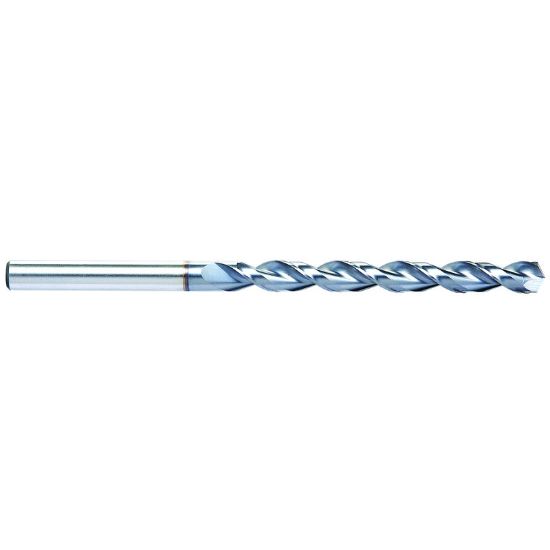

YG-1 DX517024 3/8 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill TICN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DX517024
Delivery date: 3-5 days
$40.87

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Package Size 5
Shipping State Illinois
Coating TiCN
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Cutter Dia 0.3750 9.53MM - 3/8
Cut Rating <25HRC Steel, Grey Iron, Graphite, Stainless Steel
Overall Len 6.7500 171.45MM
Flute Length 4.2500 107.95MM
Cut Dia Min 0.3750 9.53MM - 3/8
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Drill Length Type Taper
Machine Side Connection Type Cylindrical
Included Angle 130°
Tool Material Cobalt
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
