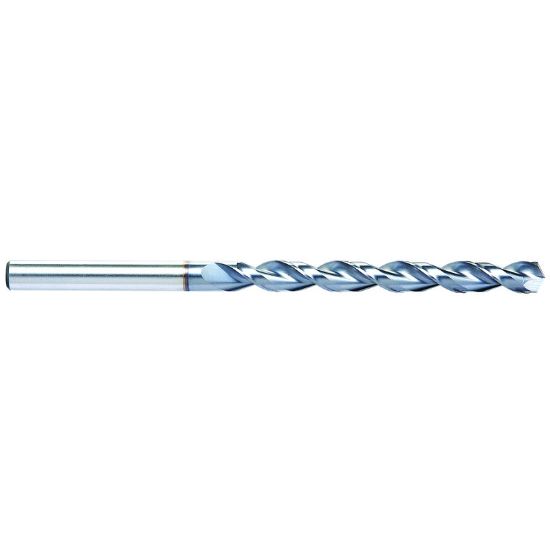

YG-1 DX517022 11/32 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill TICN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DX517022
Delivery date: 3-5 days
$38.69

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 5
Dimensional Specifications
Cut Dia Min 0.3438 8.73MM - 11/32
Drill Length Type Taper
Tool Material Cobalt
Flute Length 4.1250 104.78MM
Cut Rating <25HRC Steel, Grey Iron, Graphite, Stainless Steel
Machine Side Connection Size 0.3438 8.73MM
Flutes/Inserts 2
Cutter Dia 0.3438 8.73MM - 11/32
Shank/Pilot Dia 0.3438 8.73MM - 11/32
Overall Len 6.7500 171.45MM
Machine Side Connection Type Cylindrical
Included Angle 130°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
