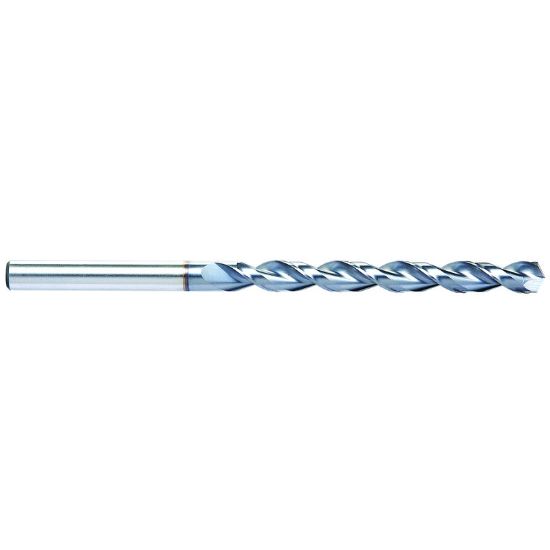

YG-1 DX517017 17/64 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill TICN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DX517017
Delivery date: 3-5 days
$21.91

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiCN
Application Drilling
Shipping State Illinois
Package Size 5
Dimensional Specifications
Flutes/Inserts 2
Tool Material Cobalt
Overall Len 6.2500 158.75MM
Cut Dia Min 0.2656 6.75MM - 17/64
Machine Side Connection Size 0.2656 6.75MM
Flute Length 3.8750 98.43MM
Drill Length Type Taper
Cutter Dia 0.2656 6.75MM - 17/64
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2656 6.75MM - 17/64
Included Angle 130°
Cut Rating <25HRC Steel, Grey Iron, Graphite, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
