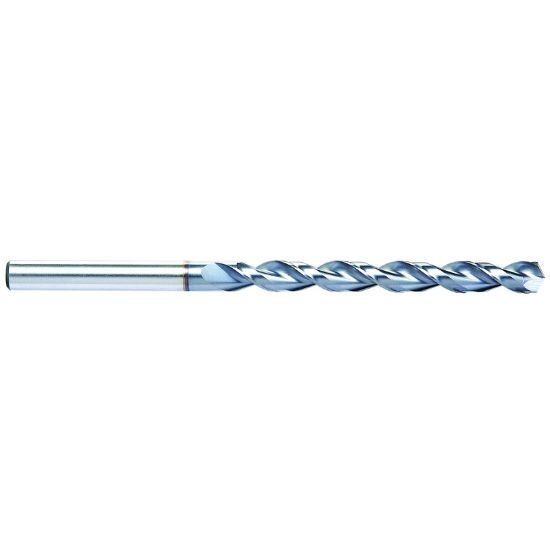

YG-1 DX517015 15/64 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill TICN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DX517015
Delivery date: 3-5 days
$20.52

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 10
Shipping State Illinois
Application Drilling
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2344 5.95MM
Included Angle 130°
Tool Material Cobalt
Flutes/Inserts 2
Flute Length 3.7500 95.25MM
Cut Rating <25HRC Steel, Grey Iron, Graphite, Stainless Steel
Shank/Pilot Dia 0.2344 5.95MM - 15/64
Cut Dia Min 0.2344 5.95MM - 15/64
Overall Len 6.1250 155.58MM
Drill Length Type Taper
Cutter Dia 0.2344 5.95MM - 15/64
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
