  • YG-1 DN515244 #44 HSS(M35) Screw Machine Parabolic TIN Coated Drill

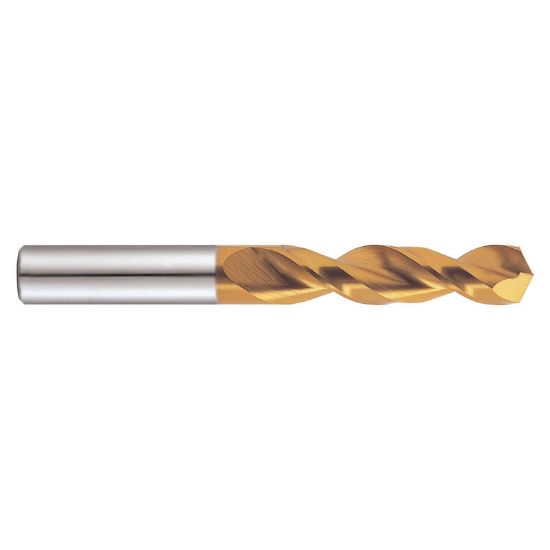

Picture of YG-1 DN515244 #44 HSS(M35) Screw Machine Parabolic TIN Coated Drill

YG-1 DN515244 #44 HSS(M35) Screw Machine Parabolic TIN Coated Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DN515244
Delivery date: 3-5 days
$2.11

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Application Drilling
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Machine Side Connection Size 0.0860 2.18MM
Overall Len 1.7500 44.45MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.0860 2.18MM - #44
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Cutter Dia 0.0860 2.18MM - #44
Flutes/Inserts 2
Flute Length 0.7500 19.05MM
Drill Length Type Screw
Shank/Pilot Dia 0.0860 2.18MM - #44
Included Angle 135°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
