  • YG-1 DLGP512233 #15 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

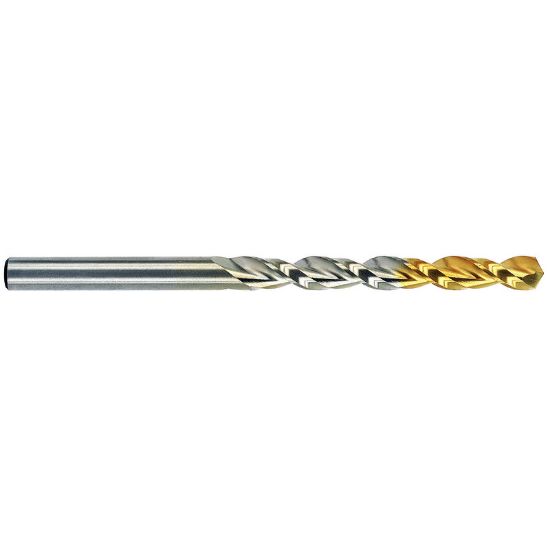

Picture of YG-1 DLGP512233 #15 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

YG-1 DLGP512233 #15 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DLGP512233
Delivery date: 3-5 days
$1.84

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Application Drilling
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Shank/Pilot Dia 0.1800 4.57MM - #15
Overall Len 3.3750 85.73MM
Included Angle 130°
Tool Material Cobalt
Flute Length 2.1880 55.58MM
Cutter Dia 0.1800 4.57MM - #15
Machine Side Connection Size 0.1800 4.57MM
Flutes/Inserts 2
Cut Rating <25HRC Steel, Grey Iron, Graphite
Machine Side Connection Type Cylindrical
Cut Dia Min 0.1800 4.57MM - #15
Drill Length Type Jobber
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
