  • YG-1 DLGP512202 #46 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

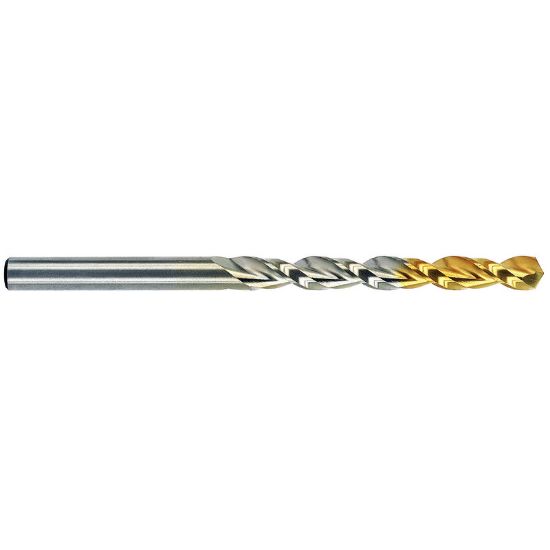

Picture of YG-1 DLGP512202 #46 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

YG-1 DLGP512202 #46 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DLGP512202
Delivery date: 3-5 days
$1.31

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 10
Coating TiN
Application Drilling
Shipping State Illinois
Dimensional Specifications
Cut Rating <25HRC Steel, Grey Iron, Graphite
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.0810 2.06MM
Included Angle 130°
Flutes/Inserts 2
Flute Length 1.1250 28.58MM
Cutter Dia 0.0810 2.06MM - #46
Overall Len 2.1250 53.98MM
Cut Dia Min 0.0810 2.06MM - #46
Shank/Pilot Dia 0.0810 2.06MM - #46
Tool Material Cobalt
Drill Length Type Jobber
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
