  • YG-1 DLGP511026 13/32 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

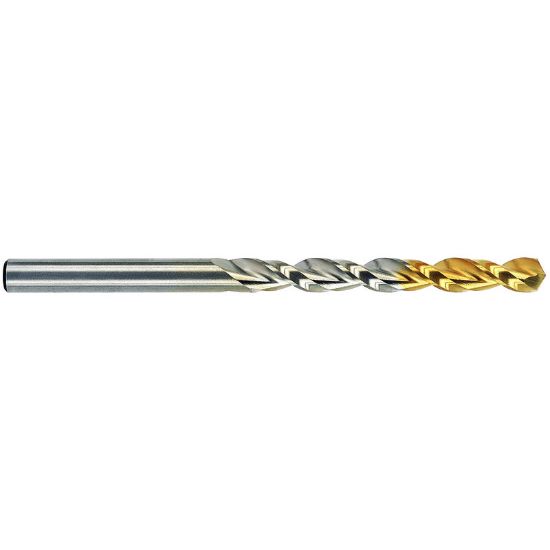

Picture of YG-1 DLGP511026 13/32 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

YG-1 DLGP511026 13/32 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DLGP511026
Delivery date: 3-5 days
$6.23

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 5
Dimensional Specifications
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.0313 26.20MM - 1-1/32
Included Angle 130°
Cut Dia Min 0.4063 10.32MM - 13/32
Overall Len 5.2500 133.35MM
Drill Length Type Jobber
Cut Rating <25HRC Steel, Grey Iron, Graphite
Machine Side Connection Size 1.0313 26.20MM
Tool Material Cobalt
Cutter Dia 0.4062 10.32MM - 13/32
Flutes/Inserts 2
Flute Length 3.8750 98.43MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
