  • YG-1 DLGP511020 5/16 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

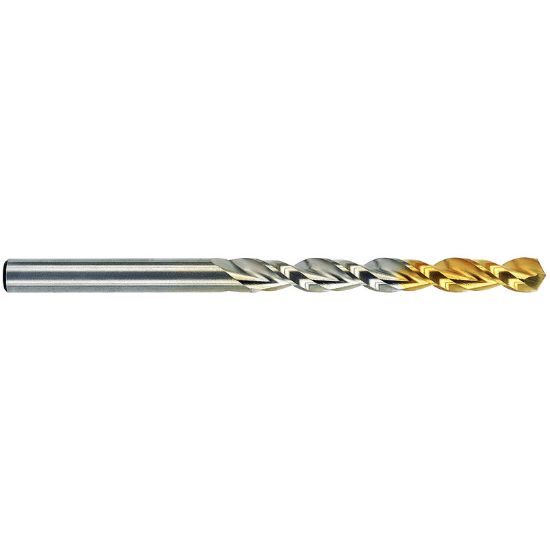

Picture of YG-1 DLGP511020 5/16 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

YG-1 DLGP511020 5/16 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DLGP511020
Delivery date: 3-5 days
$3.80

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 10
Coating TiN
Application Drilling
Made In USA No
Dimensional Specifications
Flutes/Inserts 2
Flute Length 3.1880 80.98MM
Cut Dia Min 0.3125 7.94MM - 5/16
Tool Material Cobalt
Drill Length Type Jobber
Machine Side Connection Type Cylindrical
Included Angle 130°
Cut Rating <25HRC Steel, Grey Iron, Graphite
Cutter Dia 0.3125 7.94MM - 5/16
Overall Len 4.5000 114.30MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Machine Side Connection Size 0.3125 7.94MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
