  • YG-1 DLGP511013 13/64 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

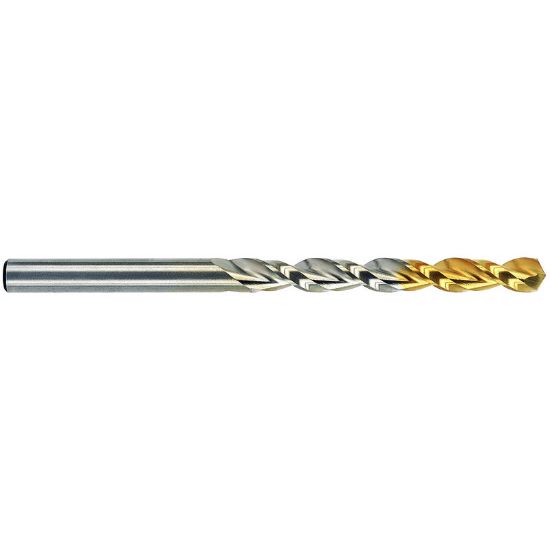

Picture of YG-1 DLGP511013 13/64 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

YG-1 DLGP511013 13/64 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DLGP511013
Delivery date: 3-5 days
$1.95

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Illinois
Package Size 10
Coating TiN
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.2031 5.16MM - 13/64
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Included Angle 130°
Cut Dia Min 0.2031 5.16MM - 13/64
Machine Side Connection Size 0.2031 5.16MM
Drill Length Type Jobber
Cutter Dia 0.2031 5.16MM - 13/64
Flutes/Inserts 2
Flute Length 2.4380 61.93MM
Cut Rating <25HRC Steel, Grey Iron, Graphite
Overall Len 3.6250 92.08MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
