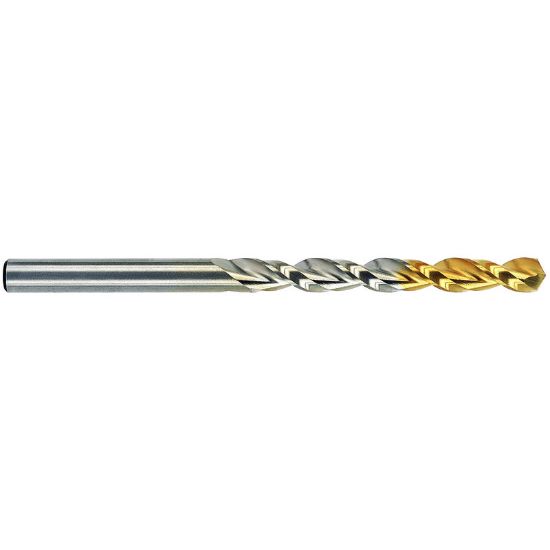

Picture of YG-1 DLGP511012 3/16 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

YG-1 DLGP511012 3/16 HSS(M35) Jobber, WORM Pattern Type SS Gold-P Drill For Deep Holes

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DLGP511012
Delivery date: 3-5 days
$1.68

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Drilling
Made In USA No
Coating TiN
Package Size 10
Dimensional Specifications
Cutter Dia 0.1875 4.76MM - 3/16
Overall Len 3.5000 88.90MM
Flute Length 2.3130 58.75MM
Machine Side Connection Size 0.1875 4.76MM
Cut Dia Min 0.1875 4.76MM - 3/16
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Drill Length Type Jobber
Machine Side Connection Type Cylindrical
Included Angle 130°
Tool Material Cobalt
Cut Rating <25HRC Steel, Grey Iron, Graphite
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
