  • YG-1 DLGP195101 10.1 HSS-Co5% Jobbers Length Straight Shank Gold-P Drill S

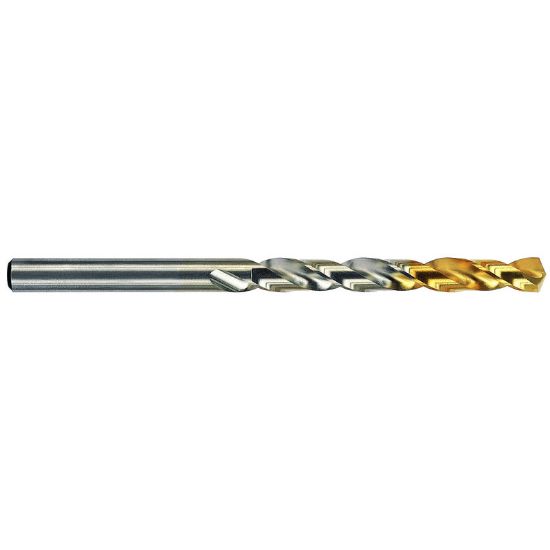

Picture of YG-1 DLGP195101 10.1 HSS-Co5% Jobbers Length Straight Shank Gold-P Drill S

YG-1 DLGP195101 10.1 HSS-Co5% Jobbers Length Straight Shank Gold-P Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DLGP195101
Delivery date: 3-5 days
$8.45

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 5
Coating TiN
Dimensional Specifications
Cut Dia Min 0.3976 10.10MM
Tool Material Cobalt
Flute Length 3.4250 87.00MM
Included Angle 135°
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Grey Iron, Graphite
Flutes/Inserts 2
Machine Side Connection Size 0.3976 10.10MM
Shank/Pilot Dia 0.3976 10.10MM
Overall Len 5.2362 133.00MM
Cutter Dia 0.3976 10.10MM
Drill Length Type Jobber
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
