  • YG-1 DLGP195096 9.6 HSS-Co5% Jobbers Length Straight Shank Gold-P Drill S

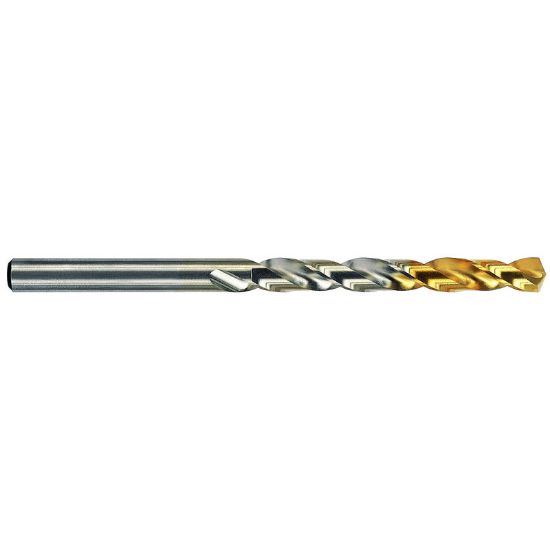

Picture of YG-1 DLGP195096 9.6 HSS-Co5% Jobbers Length Straight Shank Gold-P Drill S

YG-1 DLGP195096 9.6 HSS-Co5% Jobbers Length Straight Shank Gold-P Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DLGP195096
Delivery date: 3-5 days
$7.31

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 5
Coating TiN
Dimensional Specifications
Cut Rating <25HRC Steel, Grey Iron, Graphite
Cutter Dia 0.3780 9.60MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Flute Length 3.4250 87.00MM
Cut Dia Min 0.3780 9.60MM
Included Angle 135°
Tool Material Cobalt
Shank/Pilot Dia 0.3780 9.60MM
Machine Side Connection Size 0.3780 9.60MM
Drill Length Type Jobber
Overall Len 5.2362 133.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
