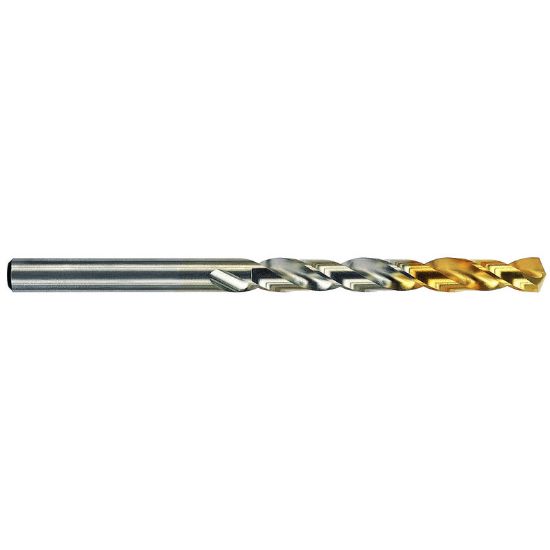

Picture of YG-1 DLGP195039 3.9 HSS-Co5% Jobbers Length Straight Shank Gold-P Drill S

YG-1 DLGP195039 3.9 HSS-Co5% Jobbers Length Straight Shank Gold-P Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DLGP195039
Delivery date: 3-5 days
$1.81

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Coating TiN
Application Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <25HRC Steel, Grey Iron, Graphite
Cutter Dia 0.1535 3.90MM
Included Angle 135°
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1535 3.90MM
Flutes/Inserts 2
Machine Side Connection Size 0.1535 3.90MM
Flute Length 1.6930 43.00MM
Cut Dia Min 0.1535 3.90MM
Tool Material Cobalt
Overall Len 2.9528 75.00MM
Drill Length Type Jobber
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
