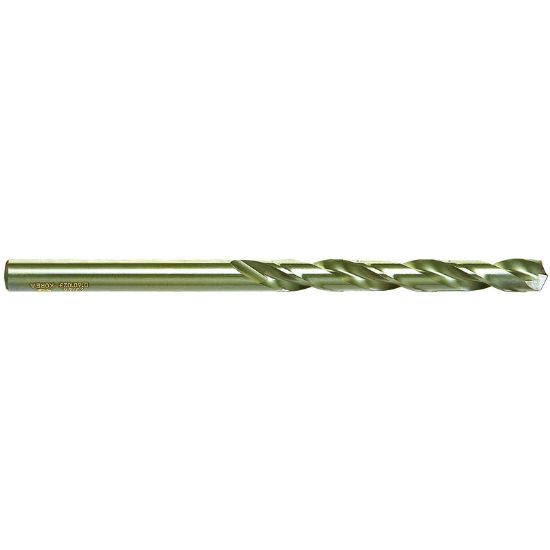

Picture of YG-1 DL604025 25/64 HSSCo5 12" Aircraft Extension Drill 135 DEGREE Split Point Coloring

YG-1 DL604025 25/64 HSSCo5 12" Aircraft Extension Drill 135 DEGREE Split Point Coloring

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DL604025
Delivery date: 3-5 days
$41.31

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Illinois
Made In USA No
Package Size 5
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Overall Len 12.0000 304.80MM
Included Angle 135°
Drill Length Type Aircraft
Machine Side Connection Size 0.3906 9.92MM
Shank/Pilot Dia 0.3906 9.92MM - 25/64
Flutes/Inserts 2
Flute Length 3.7500 95.25MM
Cut Dia Min 0.3906 9.92MM - 25/64
Cutter Dia 0.3906 9.92MM - 25/64
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
Mold Yes
Energy Yes
