  • YG-1 DL603239 #18 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

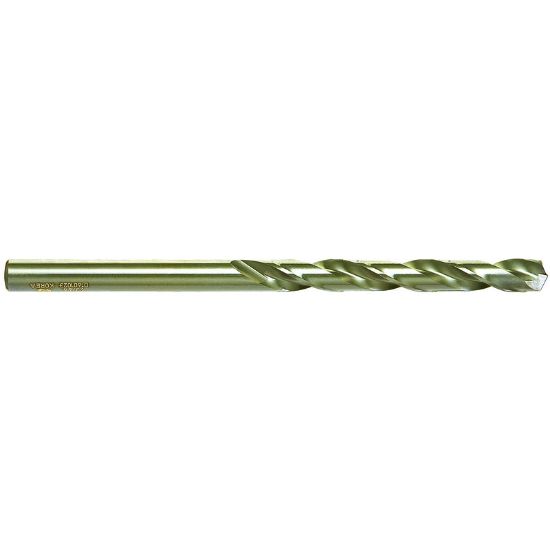

Picture of YG-1 DL603239 #18 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

YG-1 DL603239 #18 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DL603239
Delivery date: 3-5 days
$6.25

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Illinois
Package Size 10
Made In USA No
Dimensional Specifications
Cut Dia Min 0.1701 4.32MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1695 4.31MM - #18
Machine Side Connection Size 0.1695 4.31MM
Drill Length Type Aircraft
Flute Length 2.1250 53.98MM
Included Angle 135°
Cutter Dia 0.1701 4.32MM
Tool Material Cobalt
Overall Len 6.0000 152.40MM
Flutes/Inserts 2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Mold Yes
Job Shop Yes
Contractor Yes
Energy Yes
