  • YG-1 DL601023 23/64 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

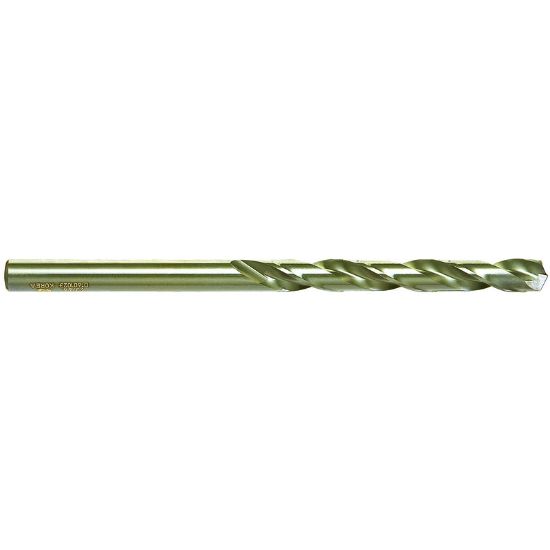

Picture of YG-1 DL601023 23/64 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

YG-1 DL601023 23/64 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DL601023
Delivery date: 3-5 days
$31.89

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 5
Dimensional Specifications
Shank/Pilot Dia 0.3594 9.13MM - 23/64
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Cut Dia Min 0.3594 9.13MM - 23/64
Flute Length 3.5000 88.90MM
Tool Material Cobalt
Cutter Dia 0.3594 9.13MM - 23/64
Machine Side Connection Type Cylindrical
Flutes/Inserts 2
Machine Side Connection Size 0.3594 9.13MM
Included Angle 135°
Overall Len 6.0000 152.40MM
Drill Length Type Aircraft
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Energy Yes
Job Shop Yes
Contractor Yes
Mold Yes
