  • YG-1 DL601020 5/16 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

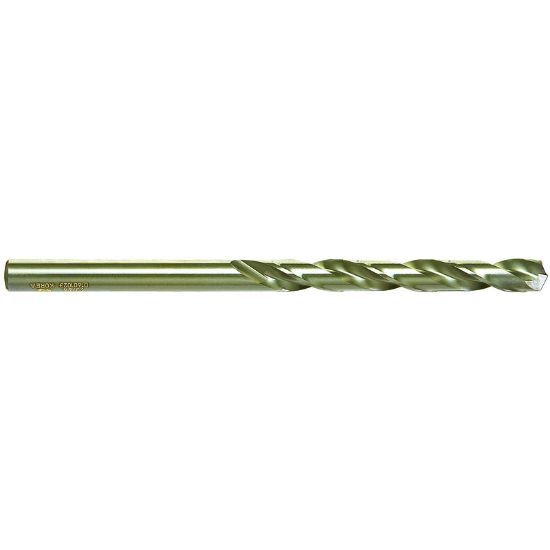

Picture of YG-1 DL601020 5/16 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

YG-1 DL601020 5/16 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DL601020
Delivery date: 3-5 days
$26.36

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Drilling
Made In USA No
Package Size 5
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Cut Dia Min 0.3125 7.94MM - 5/16
Included Angle 135°
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 6.0000 152.40MM
Drill Length Type Aircraft
Machine Side Connection Size 0.3125 7.94MM
Flutes/Inserts 2
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Flute Length 3.1880 80.98MM
Cutter Dia 0.3125 7.94MM - 5/16
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
Mold Yes
Energy Yes
