  • YG-1 DL601005 5/64 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

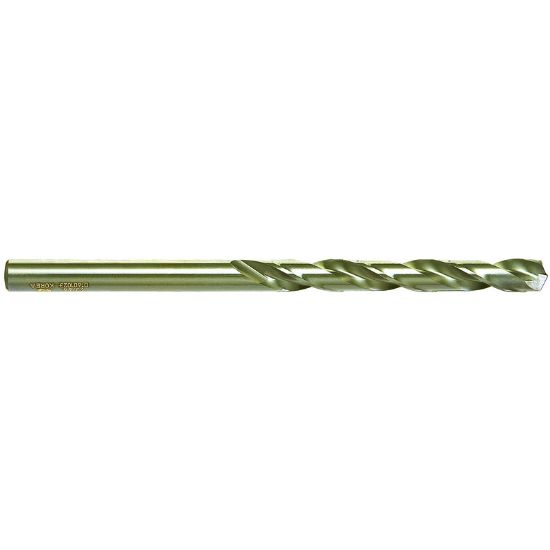

Picture of YG-1 DL601005 5/64 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

YG-1 DL601005 5/64 HSSCo5 6" Aircraft Extension Drill 135 DEGREE Split Point Coloring

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DL601005
Delivery date: 3-5 days
$5.13

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Application Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 6.0000 152.40MM
Tool Material Cobalt
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.0781 1.98MM - 5/64
Flutes/Inserts 2
Machine Side Connection Size 0.0781 1.98MM
Cutter Dia 0.0781 1.98MM - 5/64
Cut Dia Min 0.0781 1.98MM - 5/64
Machine Side Connection Type Cylindrical
Included Angle 135°
Flute Length 1.0000 25.40MM
Drill Length Type Aircraft
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Energy Yes
Job Shop Yes
Mold Yes
Contractor Yes
