  • YG-1 DL517021 21/64 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill

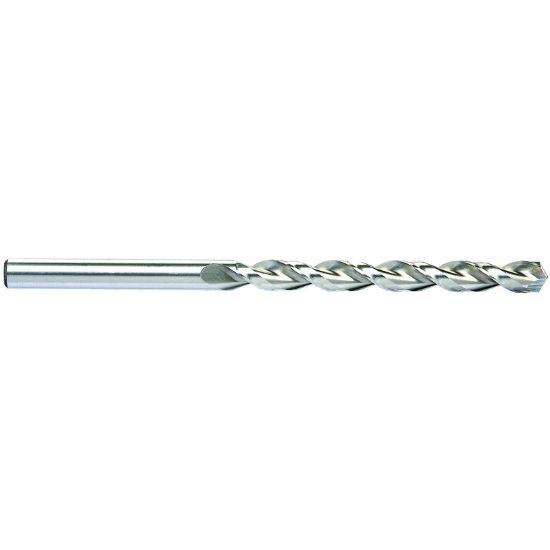

Picture of YG-1 DL517021 21/64 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill

YG-1 DL517021 21/64 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DL517021
Delivery date: 3-5 days
$37.24

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 5
Dimensional Specifications
Flutes/Inserts 2
Machine Side Connection Size 0.3281 8.33MM
Overall Len 6.5000 165.10MM
Drill Length Type Taper
Cutter Dia 0.3281 8.33MM - 21/64
Tool Material Cobalt
Flute Length 4.1250 104.78MM
Machine Side Connection Type Cylindrical
Included Angle 130°
Cut Rating <25HRC Steel, Grey Iron, Graphite, Stainless Steel
Cut Dia Min 0.3281 8.33MM - 21/64
Shank/Pilot Dia 0.3281 8.33MM - 21/64
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
