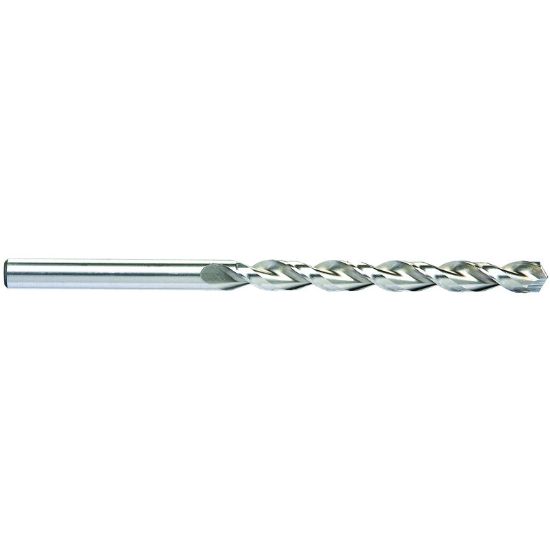

Picture of YG-1 DL517020 5/16 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill

YG-1 DL517020 5/16 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DL517020
Delivery date: 3-5 days
$25.16

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 5
Application Drilling
Shipping State Illinois
Dimensional Specifications
Overall Len 6.3750 161.93MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Included Angle 130°
Tool Material Cobalt
Flute Length 4.0000 101.60MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Cutter Dia 0.3125 7.94MM - 5/16
Cut Dia Min 0.3125 7.94MM - 5/16
Drill Length Type Taper
Cut Rating <25HRC Steel, Grey Iron, Graphite, Stainless Steel
Machine Side Connection Size 0.3125 7.94MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
