  • YG-1 DL517009 9/64 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill

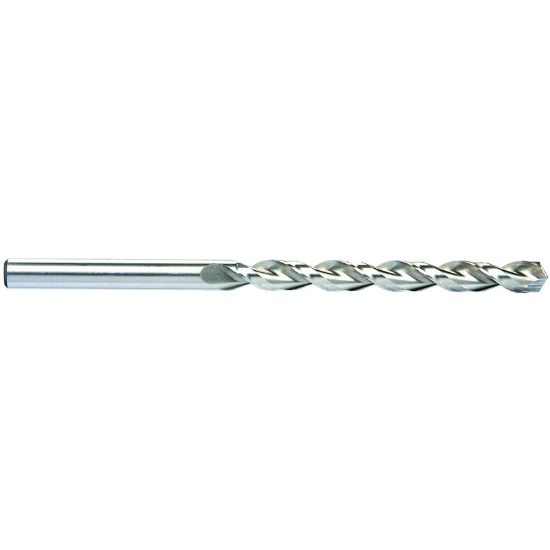

Picture of YG-1 DL517009 9/64 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill

YG-1 DL517009 9/64 HSSCo5 Parabolic Flute Taper Length Straight Shank Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DL517009
Delivery date: 3-5 days
$9.21

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 10
Dimensional Specifications
Overall Len 5.3750 136.53MM
Drill Length Type Taper
Cutter Dia 0.1406 3.57MM - 9/64 - #28
Shank/Pilot Dia 0.1406 3.57MM - 9/64 - #28
Flutes/Inserts 2
Flute Length 3.0000 76.20MM
Cut Rating <25HRC Steel, Grey Iron, Graphite, Stainless Steel
Machine Side Connection Size 0.1406 3.57MM
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Included Angle 130°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
