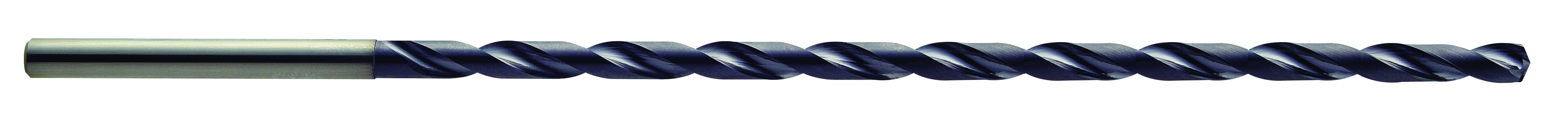

Picture of YG-1 DH520080 8.00mm Carbide Drill MQL Type W/ Coolant (20XD)

YG-1 DH520080 8.00mm Carbide Drill MQL Type W/ Coolant (20XD)

Part Number: YG1DH520080
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1147712
Vendor: Sussex Tool and Supply
$428.74

Description

YG-1 DH520080 Deep Hole Over 8Xd 8.00MM CARBIDE DRILL MQL TYPE W/ COOLANT (20XD) Coolant Thru TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 9.4882 241.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Flute Length 7.2440 184.00MM
Dia Deep 20.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.3150 8.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
