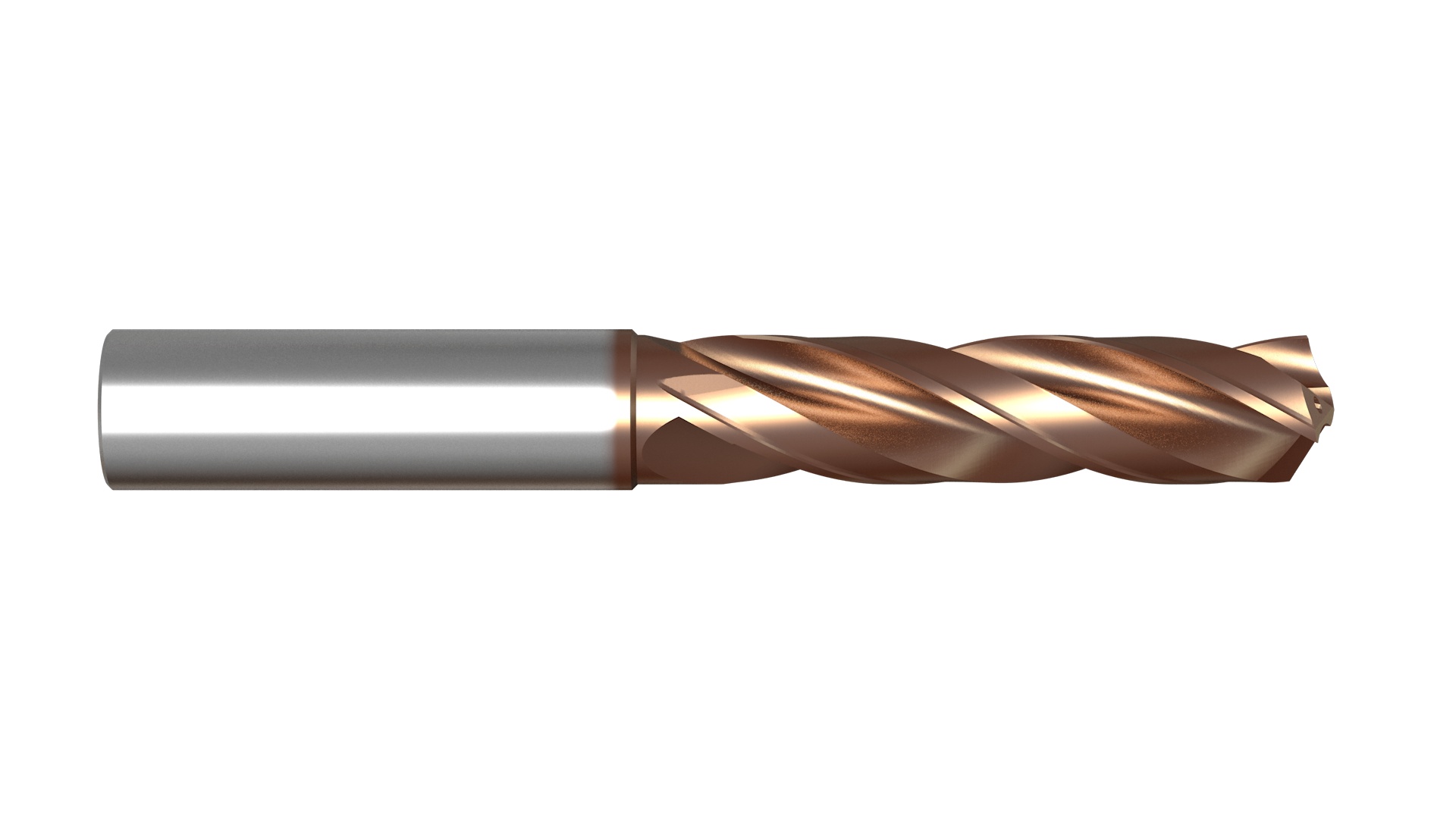

YG-1 DGR497035 35/64 Carbide Dream Drill High Feed 5XD W/ Coolant Hole Slot (H-COATING)

Part Number: YG1DGR497035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1146039
$254.56
YG-1 DGR497035 Carbide Drill 35/64 CARBIDE DREAM DRILL HIGH FEED 5XD W/ COOLANT HOLE SLOT (H-COATING) Coolant Thru TiAIN + TiN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating TiAIN + TiN
Mach Side Connection Size 0.5625 14.29MM
Overall Length 4.8819 124.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 3
Tool Dia 0.5469 13.89MM - 35/64
Type Of Tool Drill
Included Angle 140°
Flute Length 3.0310 76.99MM
Cut Dia Min 0.5469 13.89MM - 35/64
Dia Deep 5.0x Dia
