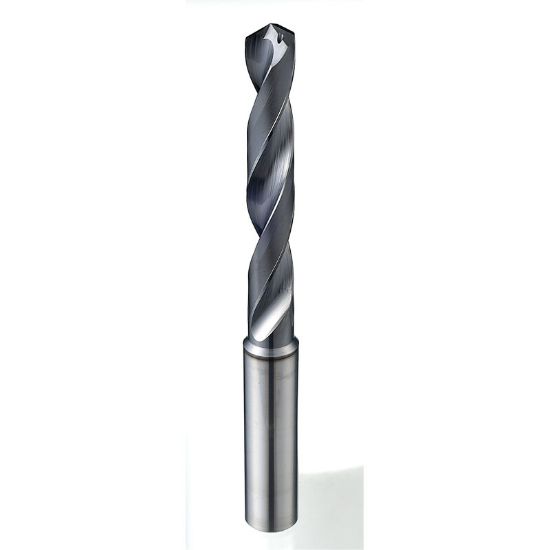

YG-1 DGE433102 10.20MM Carbide Dream Drill For Aluminum W/ Coolant (5XD) - Metric

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1DGE433102
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Drilling Thru Coolant
Made In USA No
Coating DLC
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.4016 10.20MM
Flutes/Inserts 2
Cut Rating Aluminum, Brass, Plastic, Copper
Dia Deep 5.0XD
Flute Length 2.7950 70.99MM
Machine Side Connection Size 0.4724 12.00MM
Overall Len 4.6457 118.00MM
Cut Dia Min 0.4016 10.20MM
Included Angle 118°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
