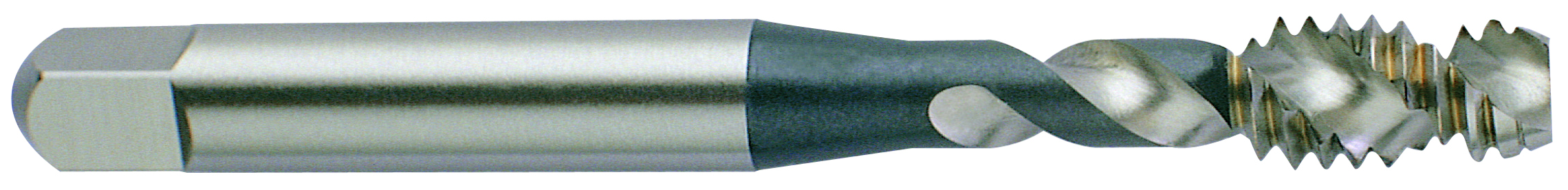

Picture of YG-1 D8283 No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

YG-1 D8283 No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

Part Number: YG-D8283

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1161562
Vendor: Sussex Tool and Supply
$21.44
YG-1 D8283 No.8x32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick H3/GH3 NC/UNC Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Graphite, Aluminum, Brass, Plastic
Coating Hardslick
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.8
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Tap Chamfer 2.0P-3.0P
