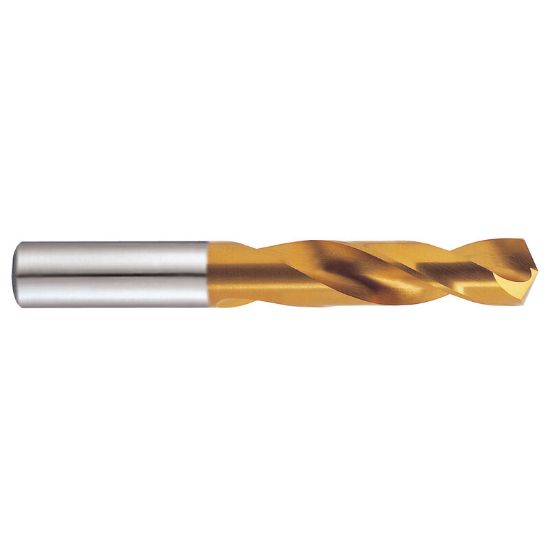

Picture of YG-1 D4146023 23/64 HSS(M42) Screw Machine Drill TIN Coated

YG-1 D4146023 23/64 HSS(M42) Screw Machine Drill TIN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D4146023
Delivery date: 3-5 days
$7.35

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Package Size 5
Shipping State Illinois
Coating TiN
Dimensional Specifications
Cut Dia Min 0.3594 9.13MM - 23/64
Cutter Dia 0.3594 9.13MM - 23/64
Machine Side Connection Type Cylindrical
Drill Length Type Screw
Shank/Pilot Dia 0.3594 9.13MM - 23/64
Flute Length 1.7500 44.45MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Machine Side Connection Size 0.3594 9.13MM
Overall Len 3.0625 77.79MM
Included Angle 135°
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Contractor Yes
