  • YG-1 D4107097 9.7 HSS(M42) Stub Length DIN1897 Split Point Drill S TIN Coated

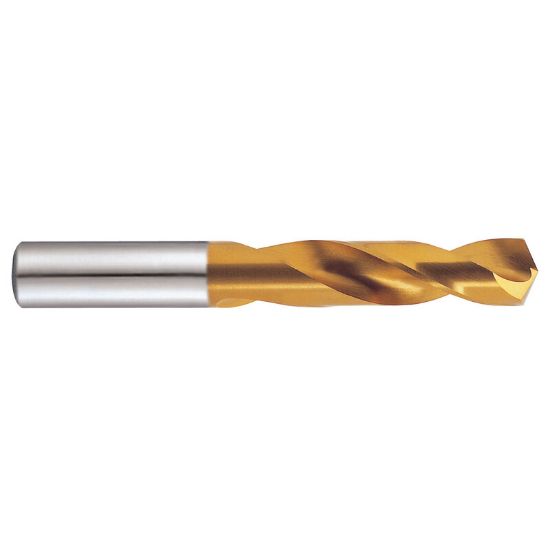

Picture of YG-1 D4107097 9.7 HSS(M42) Stub Length DIN1897 Split Point Drill S TIN Coated

YG-1 D4107097 9.7 HSS(M42) Stub Length DIN1897 Split Point Drill S TIN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D4107097
Delivery date: 3-5 days
$9.05

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Coating TiN
Application Drilling
Made In USA No
Package Size 5
Dimensional Specifications
Machine Side Connection Size 0.3819 9.70MM
Shank/Pilot Dia 0.3819 9.70MM
Overall Len 3.5039 89.00MM
Flute Length 1.6930 43.00MM
Drill Length Type Stub
Cutter Dia 0.3819 9.70MM
Cut Dia Min 0.3819 9.70MM
Included Angle 135°
Flutes/Inserts 2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Contractor Yes
