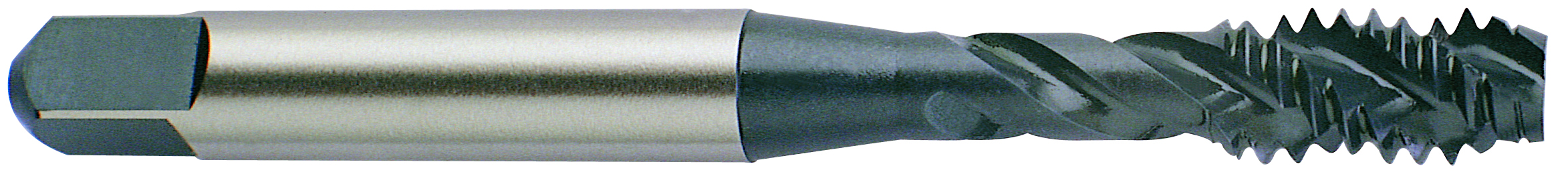

Picture of YG-1 D4082 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

YG-1 D4082 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

Part Number: YG-D4082

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1161474
Vendor: Sussex Tool and Supply
$22.94
YG-1 D4082 No.2x56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Overall Length 1.7500 44.45MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 56.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.2
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Tap Square 0.1100
Tap Chamfer 2.0P-3.0P
