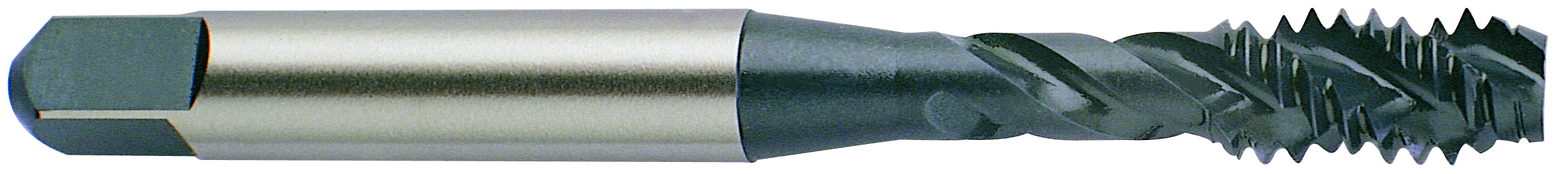

Picture of YG-1 D2345 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

YG-1 D2345 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

Part Number: YG-D2345

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1161311
Vendor: Sussex Tool and Supply
$16.35
YG-1 D2345 No.10x32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick H5/GH5 NF/UNF/UNEF Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Stainless Steel
Coating Hardslick
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.10
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Chamfer 2.0P-3.0P
